지주삽입형

HUB

HUB

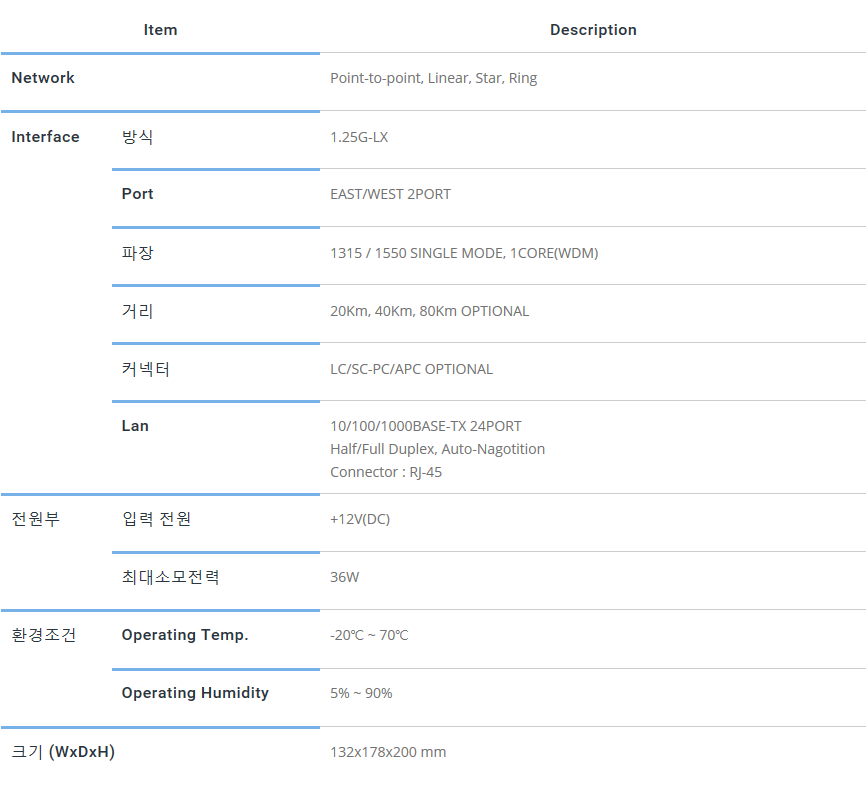

Specifications

Item
Description
Network
 Point-to-point, Linear, Star, Ring
Interface
방식
 1.25G-LX
Port
 EAST/WEST 2PORT
파장
 1315 / 1550 SINGLE MODE, 1CORE(WDM)
거리
 20Km, 40Km, 80Km OPTIONAL
커넥터
 LC/SC-PC/APC OPTIONAL
Lan
 10/100/1000BASE-TX 24PORT
Half/Full Duplex, Auto-Nagotition
Connector : RJ-45
전원부
입력 전원
 +12V(DC)
최대소모전력
 36W
환경조건
Operating Temp.
 -20℃ ~ 70℃
Operating Humidity
 5% ~ 90%
크기 (WxDxH)
 132x178x200 mm

Specifications

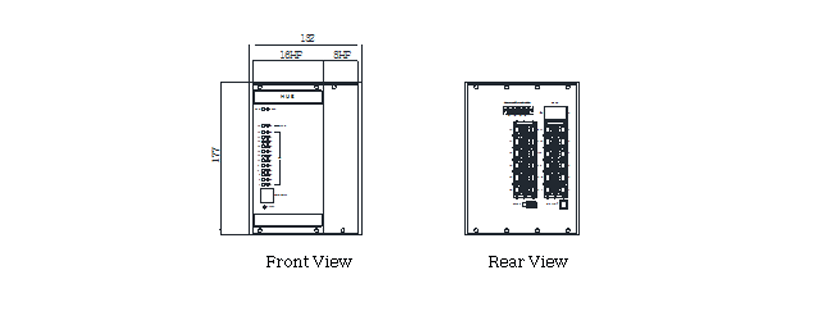

Dimensions
