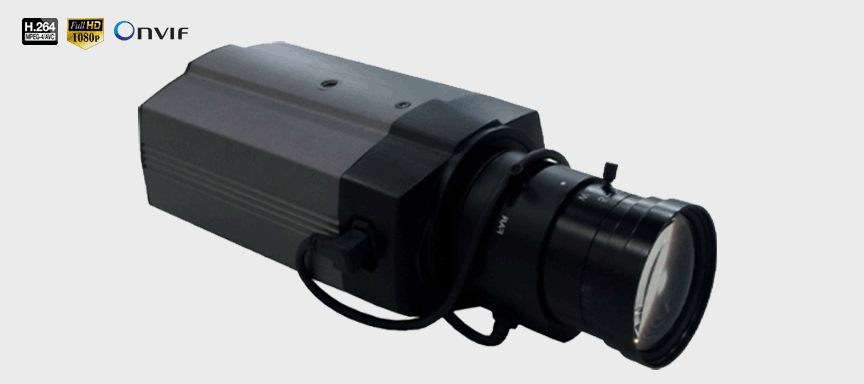

UERON-IBX300F

UERON-IBX300F

ㆍH.264/MJPEG 듀얼 엔코딩 지원
ㆍ다양한 입출력 센서 지원(Senosorx1 Alarmx1)
ㆍ1/2.8” Sony IMX222 Progressive Scan CMOS sensor
ㆍ2 MP(1080P/ 720P/D1/VGA/CIF/QCIF)
ㆍTriple Stream support
ㆍCOLOR : 0.1Lux, B/W : 0.01Lux
ㆍAGC, AE, AWB, AF, TDN, WDR, 2D/3D DNR
ㆍPoE (802.3af)
ㆍRS485 Port 지원

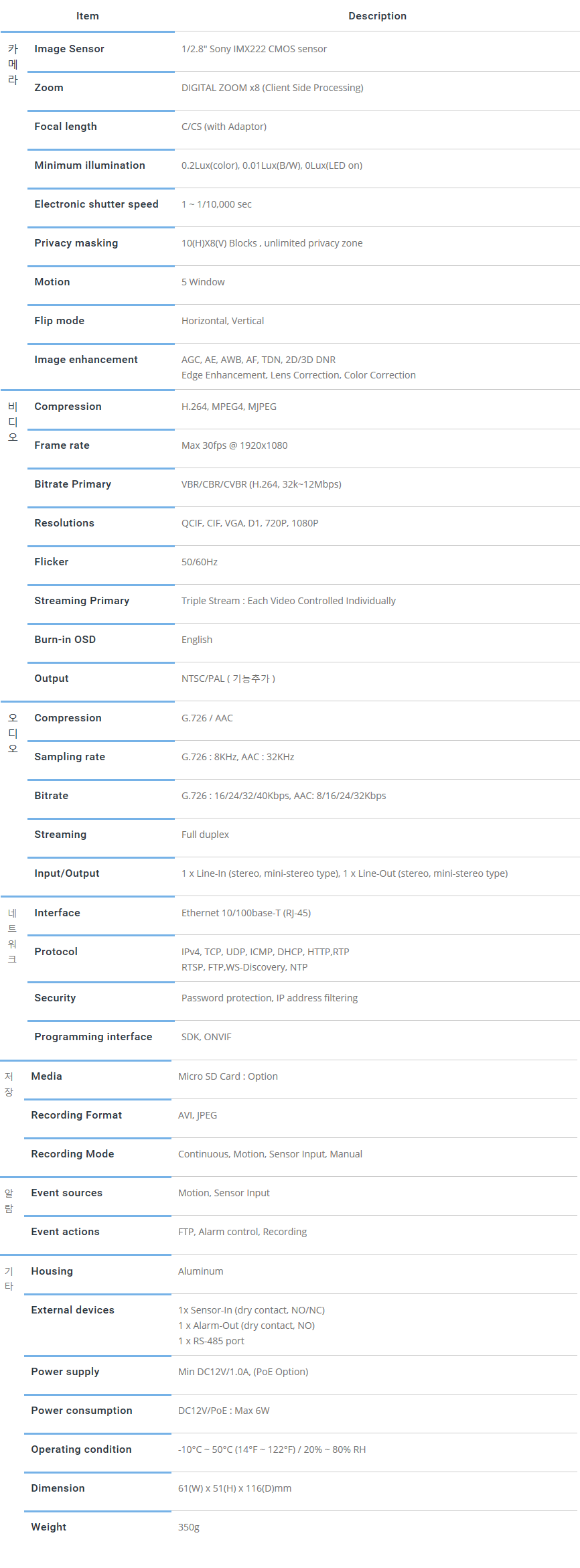

Specifications

Item
Description


Image Sensor
1/2.8" Sony IMX222 CMOS sensor
Zoom
DIGITAL ZOOM x8 (Client Side Processing)
Focal length
C/CS (with Adaptor)
Minimum illumination
0.2Lux(color), 0.01Lux(B/W), 0Lux(LED on)
Electronic shutter speed
1 ~ 1/10,000 sec
Privacy masking
10(H)X8(V) Blocks , unlimited privacy zone
Motion
5 Window
Flip mode
Horizontal, Vertical
Image enhancement
AGC, AE, AWB, AF, TDN, 2D/3D DNR
Edge Enhancement, Lens Correction, Color Correction


Compression
H.264, MPEG4, MJPEG
Frame rate
Max 30fps @ 1920x1080
Bitrate Primary
VBR/CBR/CVBR (H.264, 32k~12Mbps)
Resolutions
QCIF, CIF, VGA, D1, 720P, 1080P
Flicker
50/60Hz
Streaming Primary
Triple Stream : Each Video Controlled Individually
Burn-in OSD
English
Output
NTSC/PAL ( 기능추가 )


Compression
G.726 / AAC
Sampling rate
G.726 : 8KHz, AAC : 32KHz
Bitrate
G.726 : 16/24/32/40Kbps, AAC: 8/16/24/32Kbps
Streaming
Full duplex
Input/Output
1 x Line-In (stereo, mini-stereo type), 1 x Line-Out (stereo, mini-stereo type)



Interface
Ethernet 10/100base-T (RJ-45)
Protocol
IPv4, TCP, UDP, ICMP, DHCP, HTTP,RTP
RTSP, FTP,WS-Discovery, NTP
Security
Password protection, IP address filtering
Programming interface
SDK, ONVIF

Media
Micro SD Card : Option
Recording Format
AVI, JPEG
Recording Mode
Continuous, Motion, Sensor Input, Manual

Event sources
Motion, Sensor Input
Event actions
FTP, Alarm control, Recording

타l
Housing
Aluminum
External devices
1x Sensor-In (dry contact, NO/NC)
1 x Alarm-Out (dry contact, NO)
1 x RS-485 port
Power supply
Min DC12V/1.0A, (PoE Option)
Power consumption
DC12V/PoE : Max 6W
Operating condition
-10°C ~ 50°C (14°F ~ 122°F) / 20% ~ 80% RH
Dimension
61(W) x 51(H) x 116(D)mm
Weight
350g

Specifications

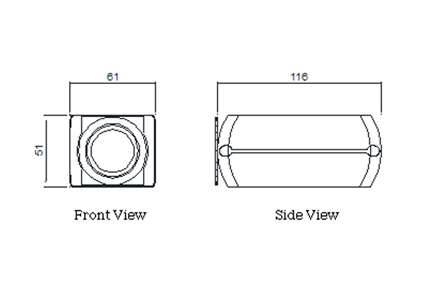

Dimensions

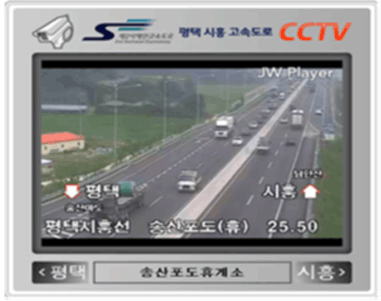

적용사례
